Details

---



Model	Description	Min. Thickness ± 2mm	Weight kg/M2	Peak Incident Pressure kPa	Protection
Secu BP50	Anti- Blast Glass	10mm	25	50	Blast resistant testing via free air blast
Secu BP200	Anti- Blast Glass	12mm	30	209	Blast resistant testing via free air blast
Secu BP600	Anti- Blast Glass	15mm	37.5	608	Blast resistant testing via free air blast
Secu BP1000	Anti- Blast Glass	15mm	37.5	1,150	Blast resistant testing via free air blast
Secu BP2200	Anti- Blast Glass	17mm	42.5	2,230	Blast resistant testing via free air blast

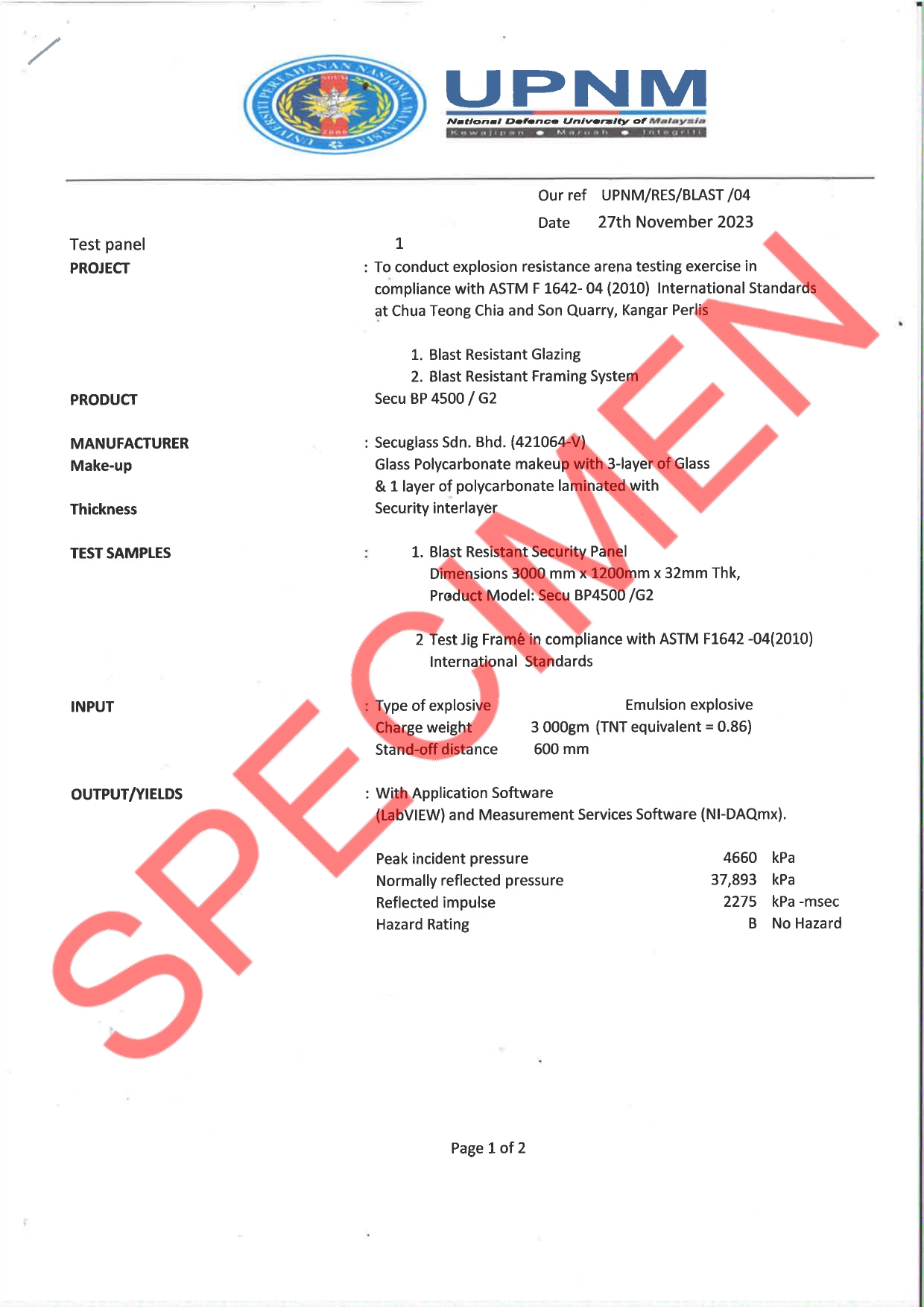

Secu BP4500	Anti- Blast Glass	32mm	72	4,660	Blast resistant glazing


In a blast event, the shock wave front created will smash through normal glass features violently. The glass is too fragile and has low impact resistance to stand up against the explosive force and any objects it has picked up. Besides the hazardous blast force getting through, equally dangerous is the generation of countless glass shards flying into the protected space, causing greater casualties and damage. These flying shards in most cases are even more deadly.

An Anti-Blast Glass is designed and installed to counter the blast load and stay intact. It must, together with the blast framing system, withstand the blast without being perforated or blown away. At the same time, the rear-facing glass of the laminated panel should not release any sizeable glass shards to cause personnel injuries.

In today’s geopolitical environment, it is indispensable to include an assessment of the blast threats when a security review of an installation or facility is undertaken, especially so when the risk profile of the locality or the sensitivity of its function is raised. Foreign missions, financial institutions and their facilities, high profile business / corporations are typical users of this product.

Uses are also found for test laboratories, industries with potential for accidental blasts (including at refineries, gas plants) arising from its process and storage / inventories, and certain business or factory premises that may attract malicious attacks with explosives.

To ensure Anti-Blast Glass can perform to the required protective specification level, products need to be tested and comply to International Standards for blast loading.

Product tested to:
ISO 16933
ISO DIS 14440
EN 13123-2
EN 13124-2
